POS - Point of Sale System

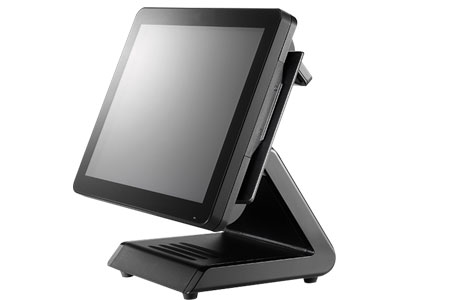

E-PoS Xtreme II – i3

15″ Touch Terminal – Ivy Bridge i3-3220 3.3 GHz dual-core 4G, NO SSD, PCAP UK
Brings Power into POS Design & Efficiency.
Bezel free 15” TFT-LCD, LED backlight, Projected Capacitive Touch (Multi-Touch)
Powerful Ivy Bridge i3-3220 3.3 GHz dual-core
DDR 3 memory supports up to 16GB, Internal 2.5” type SATA HDD x 1, Second HDD (option)
Flexible modular design and dual display supports digital signage.
Convenient wall mount and wide tilt angle.
Splash and dust resistant front bezel, IP66.

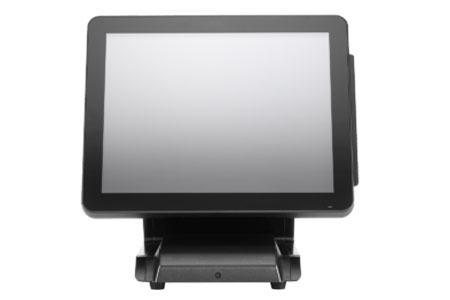

E-PoS Xtreme II – i5

15″ Touch Terminal – Ivy Bridge i5-3550S 3.0 GHz quad-core 4G, NO SSD, PCAP UK
Brings Power into POS Design & Efficiency.
Bezel free 15” TFT-LCD, LED backlight, Projected Capacitive Touch (Multi-Touch)
Ivy Bridge i5-3550S 3.0 GHz quad-core
DDR 3 memory supports up to 16GB, Internal 2.5” type SATA HDD x 1, Second HDD (option)
Flexible modular design and dual display supports digital signage.
Convenient wall mount and wide tilt angle.
Splash and dust resistant front bezel, IP66.



E-Pos Xtreme II V2

CPU: Intel® Core™ i5-4210U 1.70 GHz up to 2.70 GHz, 3M Cache
Memory: 4GB DDR3L 1333/1600MHz Optional up to 16GB, 2 x Slot (Standard 4 GB RAM)
Storage: M.2 SSD Options: 128GB / 256GB / 500GB
Graphics: Intel® HD Graphics
Display: 15” Active TFT color LCD, resolution 1024 x 768, brightness 350cd/m², LED backlight
Viewing Angle: 45° adjustable
Touch Screen: Capacitive Touch Panel
Audio: ALC 662 6 channels, MIC and Line-out
Optional OS: Windows 7 (32 & 64) Windows 10 and Windows 10 IoT LTSB, Linux



E-PoS Xtreme Turbo V2

CPU: Intel® Celeron J1900 2.0GHz Quad-core 10W
Memory: 4GB DDR3L 1333/1600MHz Optional up to 8GB (Standard 4 GB RAM)
Storage: M.2 SSD Options : 128GB / 256GB / 500GB
Graphics: Intel® HD Graphics
Display: 15” Active TFT color LCD, resolution 1024 x 768, , brightness 350cd/m², LED backlight
Viewing Angle: 45° adjustable
Touch Screen: Capacitive Touch Panel
Audio: ALC 662 6 channels, MIC and Line-out
Optional OS: Windows 7 (32 & 64) Windows 10 and Windows 10 IoT LTSB, Linux
